GB/T9330-2008 Standard PVC Insulated Braided Screened Flexible Control Cable

Name: GBT93302008 Standard PVC Insulated Braided Screened Flexible Control Cable
Brand: ZHUFENG
Price: 0.63 USD

Quality GB/T9330-2008 Standard PVC Insulated Braided Screened Flexible Control Cable wholesale

Place of Origin : Hebei, China

Brand Name : ZHUFENG

Model Number : ZR-KVVRP

MOQ : 1000 meters

Price : $0.63/meters >=1000 meters

Application : Underground

Conductor Material : Copper

Jacket : PVC

Insulation Material : PVC

model number : ZR-KVVRP

application : Information transmission system, mechanical equipment, instrumentation

rated voltage : 450/750V

specification : 0.3mm²-16mm²

core number : 2~30

standard : GB/T9330-2008

certification : ISO9001, CE, CCC, RoHS

Contact Now

Product Description

GB/T9330-2008 Standard PVC Insulated Braided Screened Flexible Control Cable

RVVP cable wire characteristics

RVVP cable is also called electrical connection anti-interference soft cable, is a kind of soft conductor PVC insulated line plus a shielding layer and PVC sheath cable, rated voltage is 300/300V generally.

Its texture is very soft, can be bent at will, but not easy to break, in daily life is relatively common, a wide range of applications.Good compatibility and can be used in harsh environments.

It is suitable for communication, audio, broadcasting, sound system, anti-theft alarm system, intelligent automation system, automatic meter reading system, fire protection system, etc., which need anti-interference line connection, efficient and safe data transmission cable.

RVVP CABLE Technical Parameters

1. RVVP implementation standard JB/T8734.5-2012
2. PVC insulation
3. PVC sheath
4. The conductor is multi-core annealed bare copper stranded
5. Stranded composite cable with more than two cores
6. It can be shielded by aluminum foil after cable formation
7. Bare copper wire or tinned copper wire braided shielding net
8. The rated voltage is 300/300V
9. Normal working temperature does not exceed 70 ºC
10. Product CCC CE certification

Specification

Product name	Electrical connection anti-interference soft cable	Insulation	PVC
Model	RVVP	Temperature	70°C
Rated voltage	300/300V	Standard	JB/T 8734.3-2016
Specification	0.3/0.5/0.75/1/1.5/2.5/4/6/10/16mm²	Sheath	PVC
Application	Fire automatic fire alarm system detector lines, household appliances, small power tools, instruments and instruments and power lighting lines, connecting power amplifier and sound equipment, broadcast system transmission amplifier amplification processingof audio signals,etc.	Conductor	high quality Oxygen-free copper

Other productions

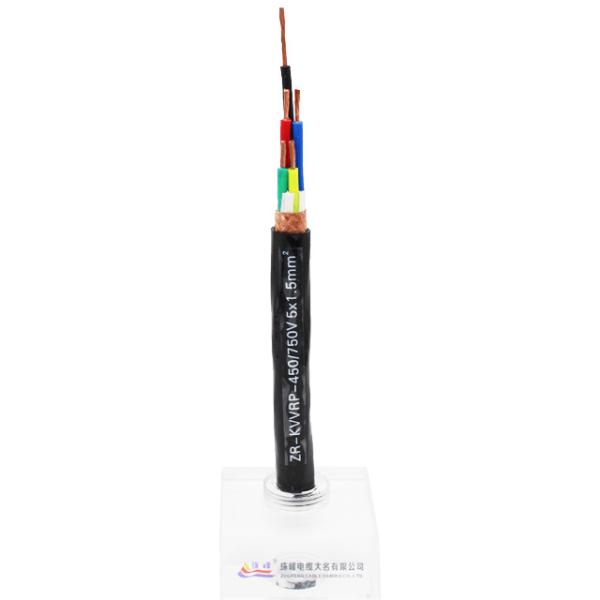

GB/T9330-2008 Standard PVC Insulated Braided Screened Flexible Control Cable Images
