Low Smoke Halogen-Free Flame Retardant Copper XLPE Insulated Wires

Place of Origin : Hebei, China

Brand Name : ZHUFENG

Model Number : WDZN-BYJ

MOQ : 1000 meters

Price : $0.12 - $0.36/meters

Insulation Material : Xlpe

Type : LOW VOLTAGE

Application : Industrial

Conductor Material : Copper

Jacket : None

Size : 1.5-400mm²

Certificate : ISO9001/ISO14001/CCC/CE/RoHS

Voltage : 450/750V

Color : Customer's Requirment

Sample : Provided

Package : Steel-wooden Drum

Contact Now

Product Description
Low Smoke Halogen-Free Flame Retardant Copper XLPE Insulated Wires
Low Smoke Halogen-Free Flame Retardant Copper XLPE Insulated Wires
WDZ-BYJ cable wire characteristics
WDZ-BYJ wire uses a new generation of flame retardant crosslinked low smoke halogen-free polyolefin insulation, has a very good flame retardant, low smoke, low toxic performance, to overcome the traditional halogen-free polymer combustion produced a lot of smoke to suffocate people and corrosion of equipment defects, represents the development trend of today's wire and cable.
LSZH ( Low smoke halogen-free ) flame retardant wire's performance is mainly manifested in if the fire occurs, the spread speed is slow, the toxic smoke concentration is low, the visual field visibility is high, the harmful gas release amount is small, easy to evacuate the disaster site personnel.
LSZH cable combustion gas corrosion is very small, so as to avoid damage to equipment. Low smoke halogen-free wire has a strong and improved uv resistance and aging, thus extending the service life of the cable.
LSZH cable in combustion: halogen acid gas release ≤100mg/g,z light transmittance is 60%;
LSZH cable when burning: PH value ≥4.3, conductivity ≤10μS/mm, z light transmittance 60%.
What's the difference between BV and BYJ?
BV wire is PVC insulated, BYJ wire is XLPE insulated. BYJ -- Copper conductor XLPE insulated fixed laying wire, temperature class 90℃; BV -- Copper conductor for fixed laying with PVC insulation, temperature class 70℃.
Specification
Product name
Copper conductor Xlpe insulated electrical wire
Insulation
XIPE
Model
BYJ
Temperature
90°C
Rated voltage
450/750V
Standard
Q/301223KLA55-2015
Specification
1.5/2.5/4/6mm²
Application
Suitable for rated voltage 450/750V and below, halogen-free, low smoke, flame retardant, safety and environmental protection requirements of the place.
Core number
single core
Conductor
high quality Oxygen-free copper

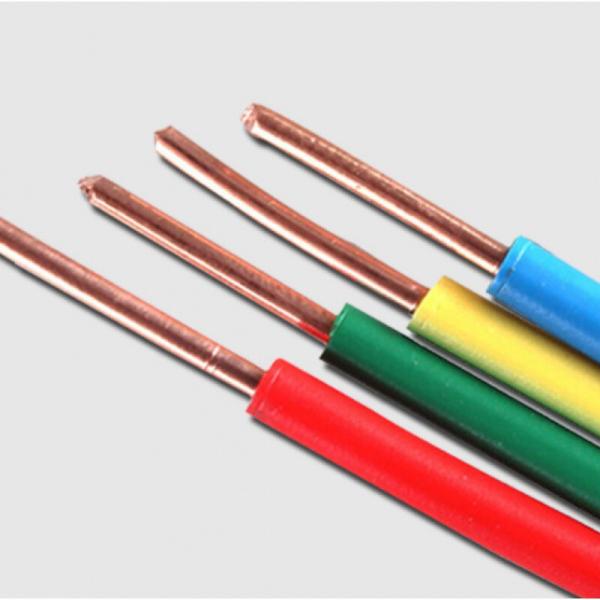

Low Smoke Halogen-Free Flame Retardant Copper XLPE Insulated Wires
Pure Oxygen-Free Copper Conductor to Ensure Conductivity.
Environmentally-Friendly XLPE Material with Excellent Insulation Performance, Scratch Resistance, Abrasion Resistance, Great Toughness.
Low Smoke Halogen-Free Flame Retardant Copper XLPE Insulated Wires
